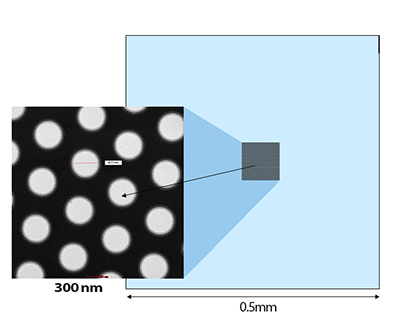

這是最新推出的多孔氮化硅膜窗口（陣列孔薄膜），3mm直徑的外框架(其厚200um)，內有0.5*0.5mm大小的窗口！我們使用先進的MEMS技術，生產出的多孔氮化硅膜（微陣列孔膜），膜厚度200 nm，多孔膜區域達0.45*0.45mm大小，膜耐酸、堿和溶劑，耐受高溫實驗(高達1000°C)。有不同直徑大小的孔可供選擇！孔的排列也有兩種：正方形排列square和六邊形排列Hexagon。此類產品主要用于納米科技研究領域！
產品選購：
|
貨號 |
產品描述 |
孔大小 |
孔間距 |
規格 |
|
76043-50 |
Holey Silicon Nitride TEM Window Grids, Nanoporous, Square |
750nm |
1.5µm |
10個/盒 |
|
76043-51 |
Holey Silicon Nitride TEM Window Grids, Nanoporous, Square |
500nm |
1.0µm |
10個/盒 |
|
76043-52 |
Holey Silicon Nitride TEM Window Grids, Nanoporous, Square |
400nm |
0.8µm |
10個/盒 |
|
76043-53 |
Holey Silicon Nitride TEM Window Grids, Nanoporous, Square |
300nm |
0.6µm |
10個/盒 |
|
76043-54 |
Holey Silicon Nitride TEM Window Grids, Nanoporous, Square |
250nm |
0.5µm |
10個/盒 |
|
76043-55 |
Holey Silicon Nitride TEM Window Grids, Nanoporous, Square |
200nm |
0.4µm |
10個/盒 |
|
76043-56 |
Holey Silicon Nitride TEM Window Grids, Nanoporous, Square |
150nm |
0.4µm |
10個/盒 |
|
76043-57 |
Holey Silicon Nitride TEM Window Grids, Nanoporous, Square |
100nm |
0.4µm |
10個/盒 |
|
76043-40 |
Holey Silicon Nitride TEM Window Grids, Microporous, Square |
10µm |
20µm |
10個/盒 |
|
79043-41 |
Holey Silicon Nitride TEM Window Grids, Microporous, Square |
5µm |
10µm |
10個/盒 |
|
76043-42 |
Holey Silicon Nitride TEM Window Grids, Microporous, Square |
2.5µm |
5µm |
10個/盒 |
|
76073-43 |
Holey Silicon Nitride TEM Window Grids, Microporous, Square |
2µm |
3µm |
10個/盒 |
|
76043-44 |
Holey Silicon Nitride TEM Window Grids, Microporous, Square |
1.2µm |
2.5µm |
10個/盒 |
|
76043-45 |
Holey Silicon Nitride TEM Window Grids, Microporous, Square |
1.0µm |
2µm |
10個/盒 |
|
76043-70 |
Holey Silicon Nitride TEM Window Grids, Nanoporous, Hexagon |
750nm |
1.5µm |
10個/盒 |
|
76043-71 |
Holey Silicon Nitride TEM Window Grids, Nanoporous, Hexagon |
500nm |
1.0µm |
10個/盒 |
|
76043-72 |
Holey Silicon Nitride TEM Window Grids, Nanoporous, Hexagon |
400nm |
0.8µm |
10個/盒 |
|
76043-73 |
Holey Silicon Nitride TEM Window Grids, Nanoporous, Hexagon |
300nm |
0.6µm |
10個/盒 |
|
76043-74 |
Holey Silicon Nitride TEM Window Grids, Nanoporous, Hexagon |
250nm |
0.5µm |
10個/盒 |
|
76043-75 |
Holey Silicon Nitride TEM Window Grids, Nanoporous, Hexagon |
200nm |
0.4µm |
10個/盒 |
|
76043-76 |
Holey Silicon Nitride TEM Window Grids, Nanoporous, Hexagon |
150nm |
0.4µm |
10個/盒 |
|
76043-77 |
Holey Silicon Nitride TEM Window Grids, Nanoporous, Hexagon |
100nm |
0.4µm |
10個/盒 |
|
76043-60 |
Holey Silicon Nitride TEM Window Grids, Microporous, Hexagon |
10µm |
20µm |
10個/盒 |
|
76043-61 |
Holey Silicon Nitride TEM Window Grids, Microporous, Hexagon |
5µm |
10µm |
10個/盒 |
|
76043-62 |
Holey Silicon Nitride TEM Window Grids, Microporous, Hexagon |
2.5µm |
5µm |
10個/盒 |
|
76043-63 |
Holey Silicon Nitride TEM Window Grids, Microporous, Hexagon |
2µm |
3µm |
10個/盒 |
|
76043-64 |
Holey Silicon Nitride TEM Window Grids, Microporous, Hexagon |
1.2µm |
2.5µm |
10個/盒 |
|
76043-65 |
Holey Silicon Nitride TEM Window Grids, Microporous, Hexagon |
1.0µm |
2µm |
10個/盒 |
